Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS

LED Panel Compact Aluminium White 595x595x32 mm
3630 lm
4000K
5 year warranty
220-240V
<19

LV017223
Datasheet
44,95
Stock: 89
Expected delivery time: 1 - 3 days
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
LED Panel Compact Aluminium White 595x595x32 mm
3630 lm
4000K
5 year warranty
220-240V
<19
44,95
Stock: 89
Expected delivery time: 1 - 3 days
Shipped from:
Dutch warehouse
European warehouse
1
Wil je het product dimbaar maken?

Verwacht je het product te gaan dimmen? Dan raden wij aan een Driver toe te voegen.

2
Wil je het product dimbaar maken?

Verwacht je het product te gaan dimmen? Dan raden wij aan een Driver toe te voegen.

3
Wil je het product dimbaar maken?

Verwacht je het product te gaan dimmen? Dan raden wij aan een Driver toe te voegen.

Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
LED Panel Compact Aluminium White 595x595x32 mm
3630 lm
4000K
5 year warranty
220-240V
<19
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
44,95
Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
LED Panel Compact Aluminium White 595x595x32 mm
3630 lm
4000K
5 year warranty
220-240V
<19
44,95
Stock: 89
Expected delivery time: 1 - 3 days
Shipped from:
Dutch warehouse
European warehouse
Mounting accessories:
Extension cable:
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Lightsources Fixures Installation material Other
Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
Description

Ledvance LED paneel compact aluminium wit 33W 3630 lumens - 840 koel wit

The Ledvance LED paneel compact aluminium wit delivers 3630 lumens of bright, uniform light at 33W, offering high efficiency and long-term reliability. This reliable LED panel ensures flicker-free illumination, easy installation, and an ultra-slim design ideal for modern office lighting and under-ceiling installations.

Main features for professional use

This 60x60cm LED paneel produces a clean 4000K cool white light that keeps workspaces bright and productive. Built with durable aluminium housing, it ensures strong heat management and long-term stability. Its low UGR < 19 rating reduces glare, making it comfortable for continuous use in offices, schools, and retail environments.

Applications and real-world benefits

You can easily integrate this compact LED panel into suspended ceilings or modular grid systems. It is the perfect solution for replacing outdated fluorescent fixtures with a reliable LED power supply system, reducing energy consumption while maintaining high visual comfort. Its flicker-free operation and consistent output make it great for detailed visual tasks in workspaces or showrooms.

Product specifications

  • Ledvance LED paneel compact aluminium wit 33W 3630 lumens has been designed to deliver high luminous efficiency with minimal maintenance requirements.
  • Power consumption: 33W ensures powerful output with excellent energy savings.
  • Luminous flux: 3630 lumens provides bright and even illumination across large surfaces.
  • Light color: 4000K cool white offers a neutral tone suitable for professional environments.
  • UGR: < 19 minimizes glare for better visual comfort in working areas.
  • CRI: 80-89 ensures accurate color representation for better focus and presentation.
  • Input voltage: 220-240V AC supports stable operation on standard mains power.
  • Frequency: 50-60 Hz guarantees consistent performance in various electrical setups.
  • IP value: IP20 offers basic protection against dust, perfect for indoor installations.
  • Power factor: >.93 means efficient energy use with reduced losses.
  • Material: Aluminium and steel construction ensures durability and effective heat dissipation.
  • Lifespan: 15,000 hours minimum lifespan reduces maintenance needs and replacement costs.
  • Operating temperature: -20°C to +40°C allows flexible installation in diverse environments.
  • Beam angle: 120° provides wide and uniform light distribution.
  • Flicker-free: Yes, ensuring comfortable visual conditions for daily use.
  • Warranty: 5 years coverage guarantees product reliability.
  • Mounting: Included, allowing straightforward installation.
  • Certification marks: CE and RoHS confirm safety and environmental compliance.
  • Barcode: 4099854017223 (EAN) enables easy product identification for large-scale orders.
  • SKU: LV017223 simplifies your inventory management and procurement process.

Why choose this LED panel

With a sleek aluminium finish and compact 60x60cm design, this LED panel combines high brightness with seamless visual comfort. By upgrading to this reliable LED power supply solution, you gain long service life, consistent performance, and a professional appearance for any interior.

Specifications

General

Product Name
PANEL COMPACT 600 UGR<19
Product Model
PL COMP 600 V 33W 840 U19
Product Description
Square recessed panel luminaire with low glare, for 600 x 600 mm ceiling systems
Warranty
5 years

Electrical Ratings

Power
33 W
Voltage Range
220-240 V
Frequency Range
50-60 Hz
Nominal Current
150 mA
Inrush Current
12.3 A
Inrush Current Time
52 µs
Power Factor
> 0.90
Total Harmonic Distortion
< 10 %
Protection Class
II
Operating Mode
External LED driver
Circuit Breaker Load
Max Luminaires per B16 Breaker
61
Max Luminaires per C10 Breaker
48
Max Luminaires per C16 Breaker
78

Photometric Properties

Luminous Flux
3630 lm
Luminous Efficacy
110 lm/W
Color Temperature
4000 K
Light Color
Cool White
Color Rendering Index (CRI)
> 80
Color Matching Deviation (SDCM)
< 5 sdcm
Unified Glare Rating (UGR)
< 19
Beam Angle
90°
Low Flicker
Yes
Flickering Metric (Pst LM)
< 1
Stroboscope Effect Metric (SVM)
< 0.4
Photobiological Safety Group
RG0

Physical Attributes

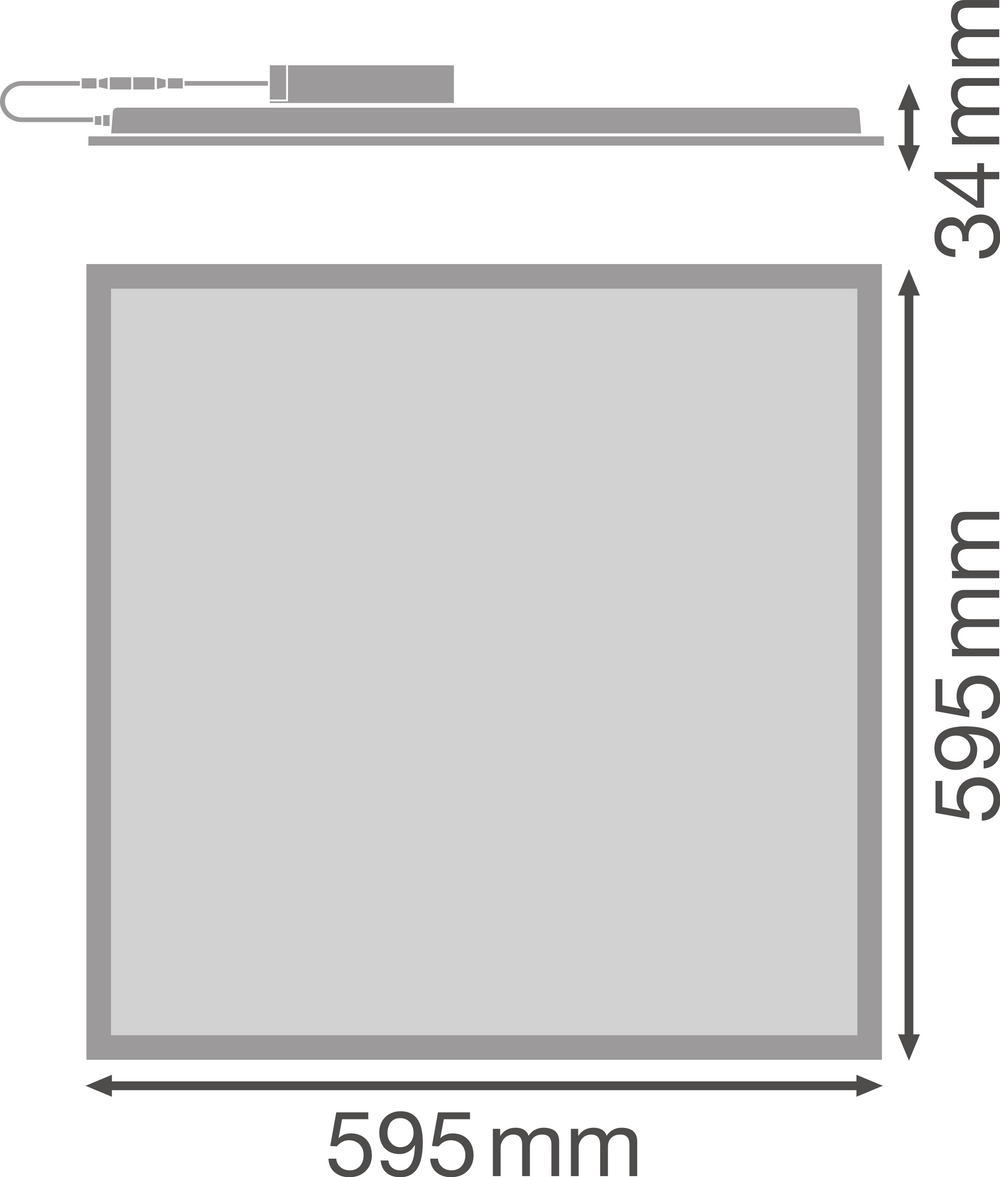

Dimensions
Length
595 mm
Width
595 mm
Height
32 mm
Weight
1790 g

Materials and Colors

Product Color
White
Housing Color
White
RAL Color
RAL 9003
Body Material
Aluminum
Cover Material
Polystyrene (PS)
Light Emitting Surface Material
Polystyrene
Mercury Free
Yes

Application and Mounting

Mounting Type
Recessed, Suspended, Surface
Mounting Location
Ceiling
Application Environment
Indoor
IP Rating
IP40/IP20
IK Rating
IK02
Dimmable
No

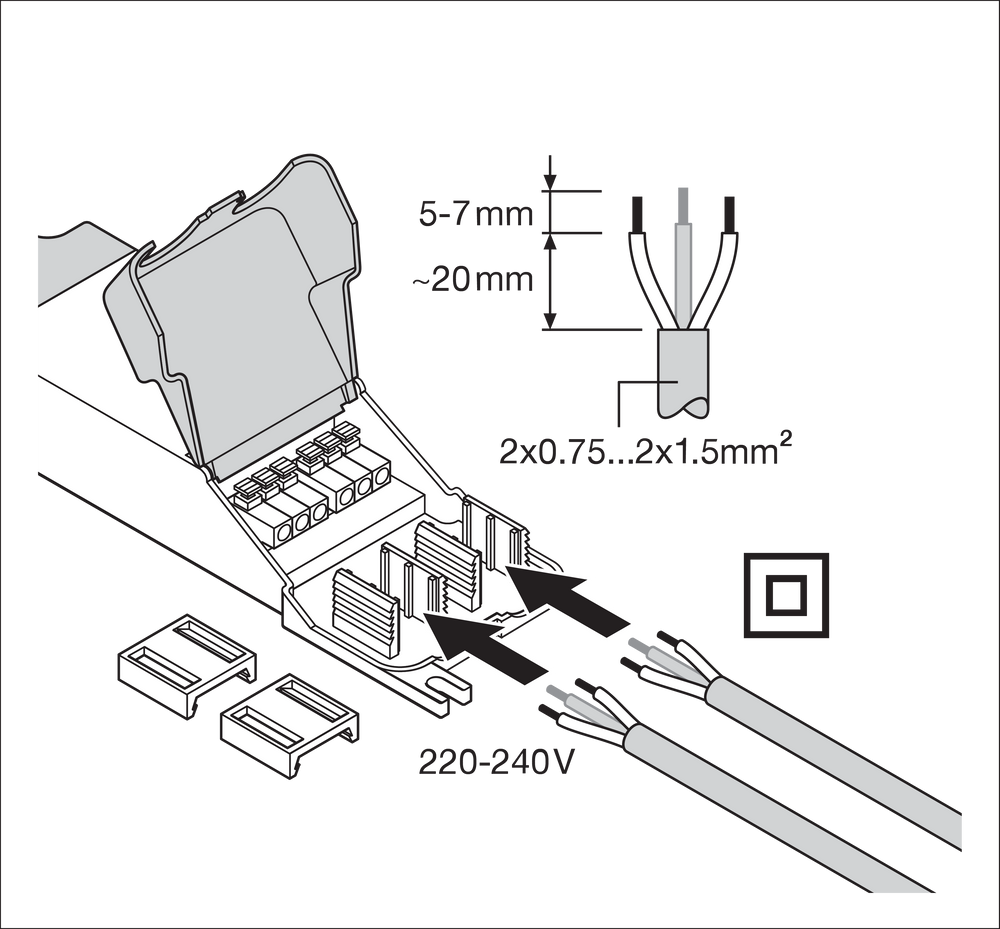

Connection Type
Screwless terminal, 2-Pole (L, N)
Light Source Included
Yes
Replaceable Light Source
No
Adjustable
No
Glow Wire Test
650 °C
Mounting Dimensions
Mounting Length
575 mm
Mounting Width
575 mm
Mounting Depth
50 mm
Operating Conditions
Ambient Temperature Range
-10 to +45 °C
Storage Temperature Range
-20 to +70 °C

Lifespan

L70/B50 at 25°C
70000 h
L80/B10 at 25°C
50000 h
L80/B50 at 25°C
50000 h
L90/B10 at 25°C
40000 h
Switching Cycles
50000

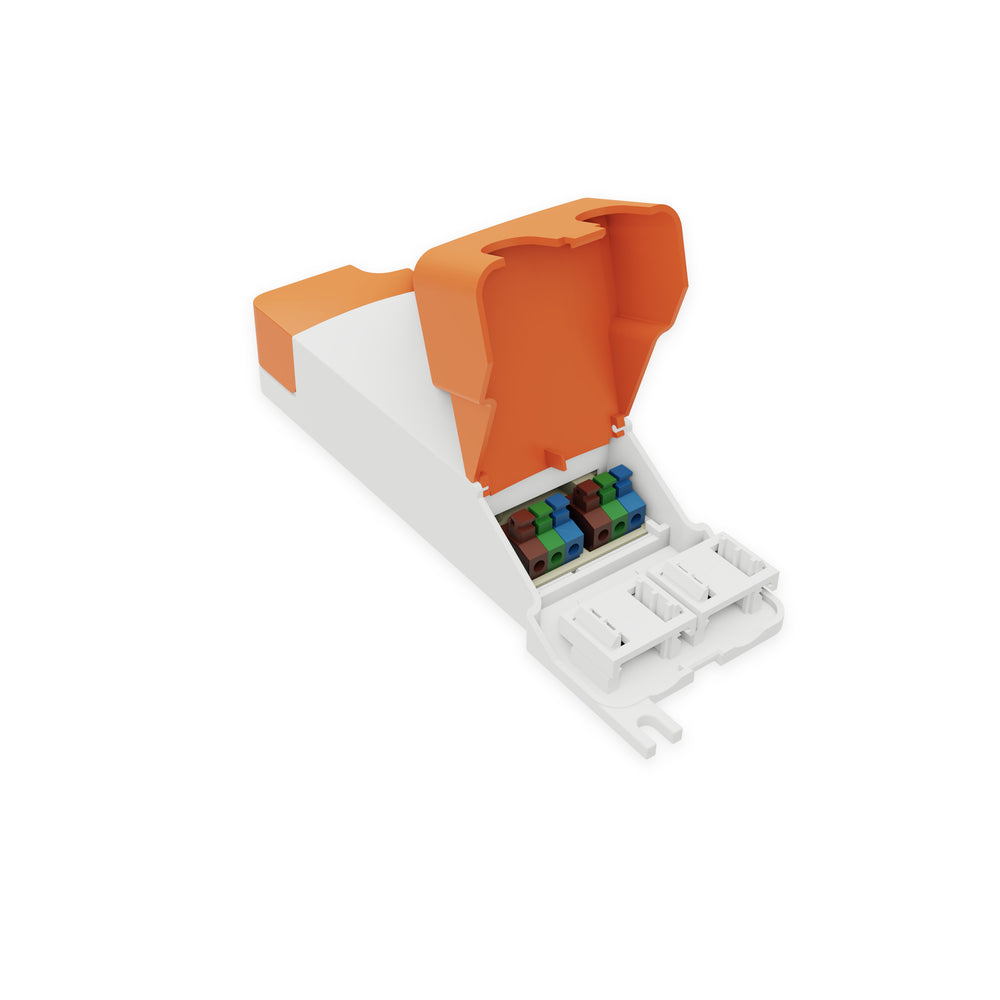

Control Gear

Output Current
700 mA
ECG Output Ripple Current
< 7 %
Recommended DALI Control Gear
LEDV DR DALI-P-44/220-240/1050
ECG Dimensions
Length
116.7 mm
Width
44 mm
Height
27 mm

Emergency Lighting

Compatibility
Optional EL unit available separately
Emergency Mode Power
5 W
Emergency Mode Luminous Flux
400 lm

Certifications and Standards

Standards
CE, CB, ENEC, UKCA, EAC, EPD
EPD Number
LEDV-00008-V01.01-EN
Limited Surface Temperature 'D sign'
No
Ball Shot Safe
No

Logistical Data

Ledvance LED Panel 60x60cm 33W 3630 lumens 4000K Cool White UGR<19 IP20 Aluminium White CE RoHS
LED Panel Compact Aluminium White 595x595x32 mm
3630 lm
4000K
5 year warranty
220-240V
<19
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
44,95
